Glass Acoustic

Tackles the double necessity, built with two glass panels which enables an attractive design and high acoustic performance

Line Systems have created a solution to focus on both the aesthetics and acoustics to fit a variety of high-quality specifications for the consumer. The Glass Acoustic is built with two glass panels which allows an attractive design with an acoustic performance up to 46 dB Rw. The partition also allows for a choice of single or double glazing further increasing the customization of each project.

Concepts

Type

Our demountable partition system is composed of 10/12mm (3/8″ / 1/2″) laminated or tempered glass which allows for total or partial glass blindness. Total profile width of 108mm (4 1/4″), this system allows 1-3 glass panels.

    Structure

    The structure of the Glass Acoustic is a continuous glass system. A union between the glass is created to achieve a high-transparency L-shape PVC profile.

    Floor & Ceiling

    The Glass Acoustic has main profile with side and central covers on the floor with a view of 36mm (1 7/16″). The main profile with side and central covers and U profile for tolerance adjustment on the ceiling which has a view of 66mm (2 5/8″).

    Acoustic Performance

    Certified by the Portuguese National Engineering Lab with an acoustic performance of 46 dB Rw.

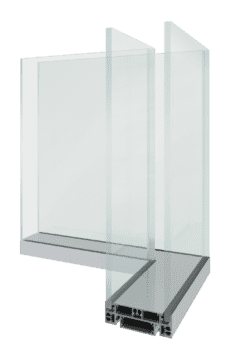

      Glass Acoustic Close Up
      Glass Acoustic Close Up

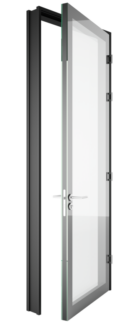

      Flush Double Glazed Door

      The Flush Double-Glazed Door has a thickness of 108mm (4 1/4″) which is created in an aluminum frame with two pieces of tempered glass. One piece is 8mm (5/16″) thick which is placed on the outside of the room and the second 6mm (1/4″ on the inside, both pieces of glass are coated in ceramic paint. Double sealing rubber and acoustic sealing brush are used to enhance the performance.

      These doors are compatible with 3D invisible hinges.

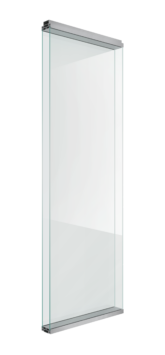

      Double Glazed Door

      The Double-Glazed Door (similar to a Glass Skin Door) is created with two pieces of 5/6mm (13/64″ / 1/4″)  tempered glass which is glued through a special gluing system. The glasses received a ceramic paint to finish (RAL colour to define).

      Final Door thickness of 50mm (2″).

      Glass Acoustic Demontration

      F.A.Q.

      Did we answer your question? We are happy to help with any information that you require such as technical specifications, quotations or any other question.

      Can Glass Skin be used alongside Glass Acoustic or PA 100 Opaque?
      Yes it can. We have connectors to make the connections. Either at a 180° or 90° angle.
      What finish options are available?

      We offer a wide range of finish options such as tempered or laminated glass with a composition of clear float or low iron. As well as premium glass options, aluminum finish, and solid panel. We can cater to a custom finish options that meet décor requirements.

      All available finish options can be seen here.

      Can I use manual blinds on Glass Acoustic?

      No. You can only use electric blinds on Glass Acoustic.
